SS Sealless Pump Tubes

LutzSKU: 2653-27

Grid List

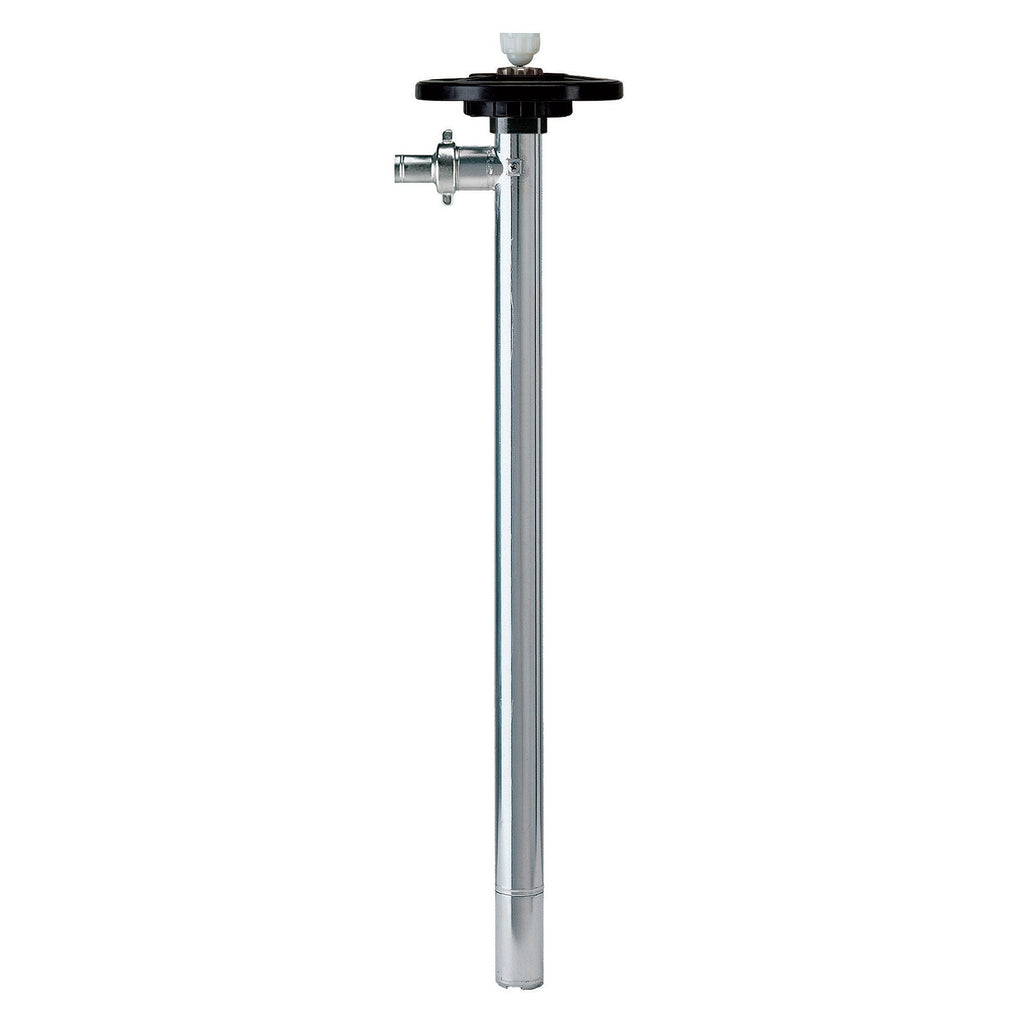

27 in. Radial-Flow Impeller SS Sealless Pump Tube
Length:
Type:
Price:
Sale price$681.60

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
27 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-27
$681.60
27 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-27
$681.60
39 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-39
$783.20
39 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-39
$783.20
47 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-47
$825.60
47 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-47
$825.60
55 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-55
$1,169.60
55 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-55
$1,169.60
59 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-59
$1,201.60
59 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-59
$1,201.60
63 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-63
$1,223.20
63 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-63
$1,223.20
67 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-67
$1,266.40
67 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-67
$1,266.40
78 in. Radial-Flow Impeller SS Sealless Pump Tube
2653-78
$1,319.20
78 in. Axial-Flow Rotor SS Sealless Pump Tube
2571-78
$1,319.20

Product has been added to your cart

Please input the Quantity!

Description

Applications:
This robust Lutz pump tube with mechanical seal or in sealless design is suitable for pumping clean and dirty, thin-bodied and slightly viscous, aggressive and non-aggressive, flammable and non-flammable liquids out of drums and small or large containers. The pump tube is non-lubricated, thus preventing contamination of the liquids pumped.

Structure and Function:
Lutz pump tubes are immersible centrifugal pumps. The drive shaft of this pump is not sealed. The bearing housing insert above the impeller is designed to prevent the pumped liquid from rising between the shaft and the inner tube. This insert guides the liquid which penetrates between the drive shaft and the shaft bearing back into the container being drained.

FDA
Pump tube also available in FDA/PURE version with Tri-Clamp connection. All materials coming into contact with the pumped medium are physiologically safe. The pump tubes are mainly used in the food, cosmetics and pharmaceutical industries.

Length:
27", 39", 47", 55", 59", 63", 67", 78"
Special length on request

Wetted Parts:
Housing: Stainless Steel (316 Ti)
Seals: None
Mechanical seal: None
Bearings: Carbon
Drive shaft: Stainless Steel (316 Ti)
Examples of media: Alcohols, Aceton, Acetonitrile, Acetates, Ether, Diethanolamine, Freon, Frigen, Methylene Chloride, Dimethyl Phthalate, Dioxane, Diethylamine, Pyridine etc.
Type of impeller: axial-flow rotor (R) or radial-flow impeller (L) Material: ETFE

Note:
Axial-flow rotor for high delivery rate and low delivery head. Radial-flow impeller for low delivery rate and high delivery head.
