Lutz - PVDF Mechanical Seal Pump Tubes

LutzSKU: 2673-27
No reviews

Grid List

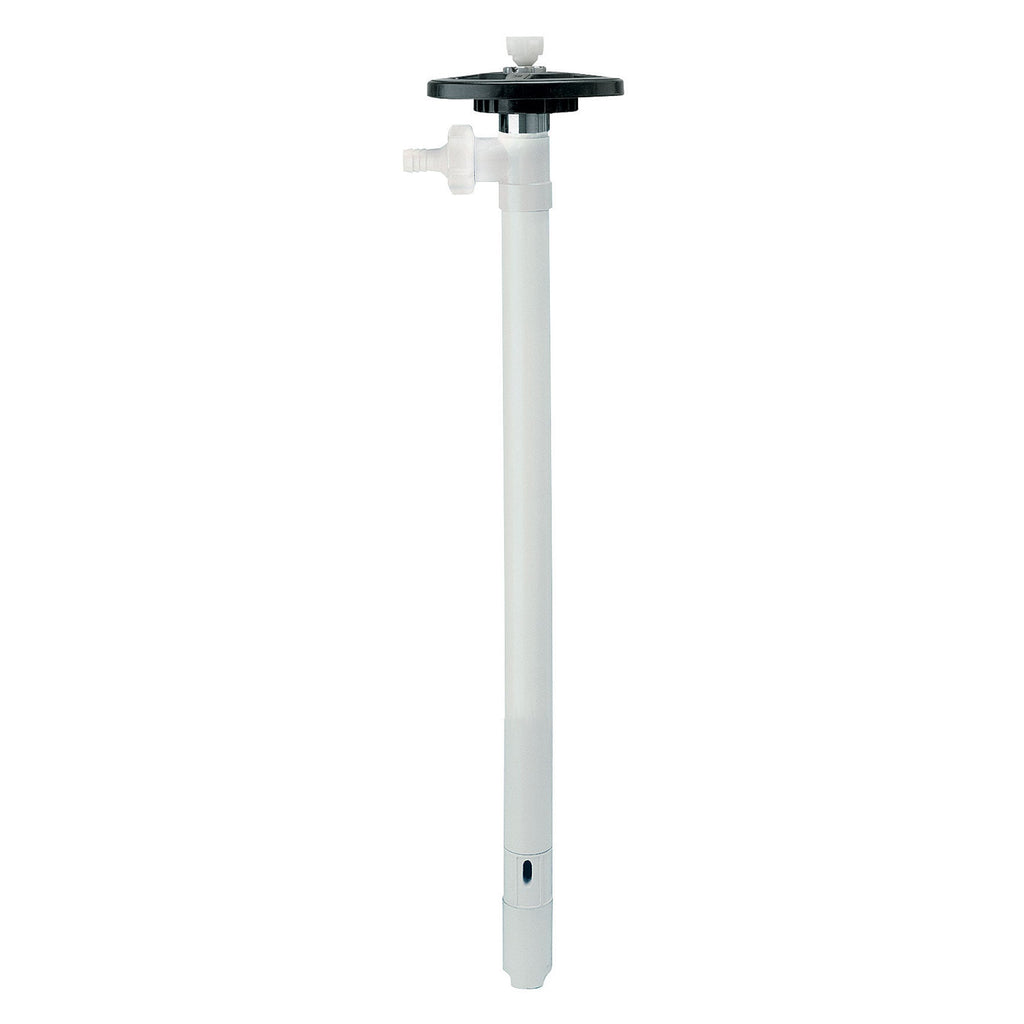

27 in. Radial-Flow Impeller PVDF Mechanical Seal Pump Tube
Length:
Type:
Price:
Sale price$840.00

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
27 in. Radial-Flow Impeller PVDF Mechanical Seal Pump Tube
2673-27
$840.00
27 in. Axial-Flow Rotor PVDF Mechanical Seal Pump Tube
2672-27
$840.00
39 in. Radial-Flow Impeller PVDF Mechanical Seal Pump Tube
2673-39
$981.00
39 in. Axial-Flow Rotor PVDF Mechanical Seal Pump Tube
2672-39
$981.00
47 in. Radial-Flow Impeller PVDF Mechanical Seal Pump Tube
2673-47
$1,047.00
47 in. Axial-Flow Rotor PVDF Mechanical Seal Pump Tube
2672-47
$1,047.00

Product has been added to your cart

Please input the Quantity!

Description

Applications:
This robust Lutz pump tube with mechanical seal or in sealless design is suitable for pumping clean and dirty, thin-bodied and slightly viscous, highly aggressive and non-aggressive liquids out of drums and small or large containers. The pump tube is non-lubricated, thus preventing contamination of the liquids pumped.

Structure and Function:
Lutz pump tubes are immersible centrifugal pumps. The drive shaft of this pump tube is sealed by a single-acting mechanical seal (MS). The patented mechanical seal is integral with the lower bearing housing. This position guarantees the best operating conditions and ensures the long service life of the mechanical seal. The pump must not be allowed to run dry.

Length:
27", 39", 47"
Special length on request

Wetted Parts:
Housing: PVDF
Mechanical seal: Carbon, SiC, FPM, HC-4 (2.4610)
Bearings: PTFE
Drive shaft: HC-4 (2.4610)
Examples of media: Highly concentrated Acids and Alkalis, Ethyl Chloride, Chloroform, Chromic Acid, Phosphoric Acid 95%, Perchloric Acid, Sulphuric Acid, Chlorine Water etc.
Type of impeller: axial-flow rotor (R) or radial-flow impeller (L) Material: ETFE

Warning:
This drum and container pump must not be used for flammable liquids.

Note:
Axial-flow rotor for high delivery rate and low delivery head. Radial-flow impeller for low delivery rate and high delivery head.
