The pump tubes RE-88 PP and RE-88 SS are designed to be used where drums or other containers have to be completely drained. The relatively small pump tube diameter of 1.61" also makes the unit ideal for use in narrow-necked containers or in drums with a 2" bunghole. The pump tube is non-lubricated, thus preventing contamination of the liquids pumped.
Structure and Function:
Lutz pump tubes are immersible centrifugal pumps. The drive shaft of this pump is sealed by a single-acting mechanical seal (MS) above the impeller, making a robust sealing system. The pump tube must not be allowed to run dry.
27", 39", 47"
Special length on request
Pump tube also available in FDA/PURE version with Tri-Clamp connection. All materials coming into contact with the pumped medium are physiologically safe. The pump tubes are mainly used in the food, cosmetics and pharmaceutical industries.

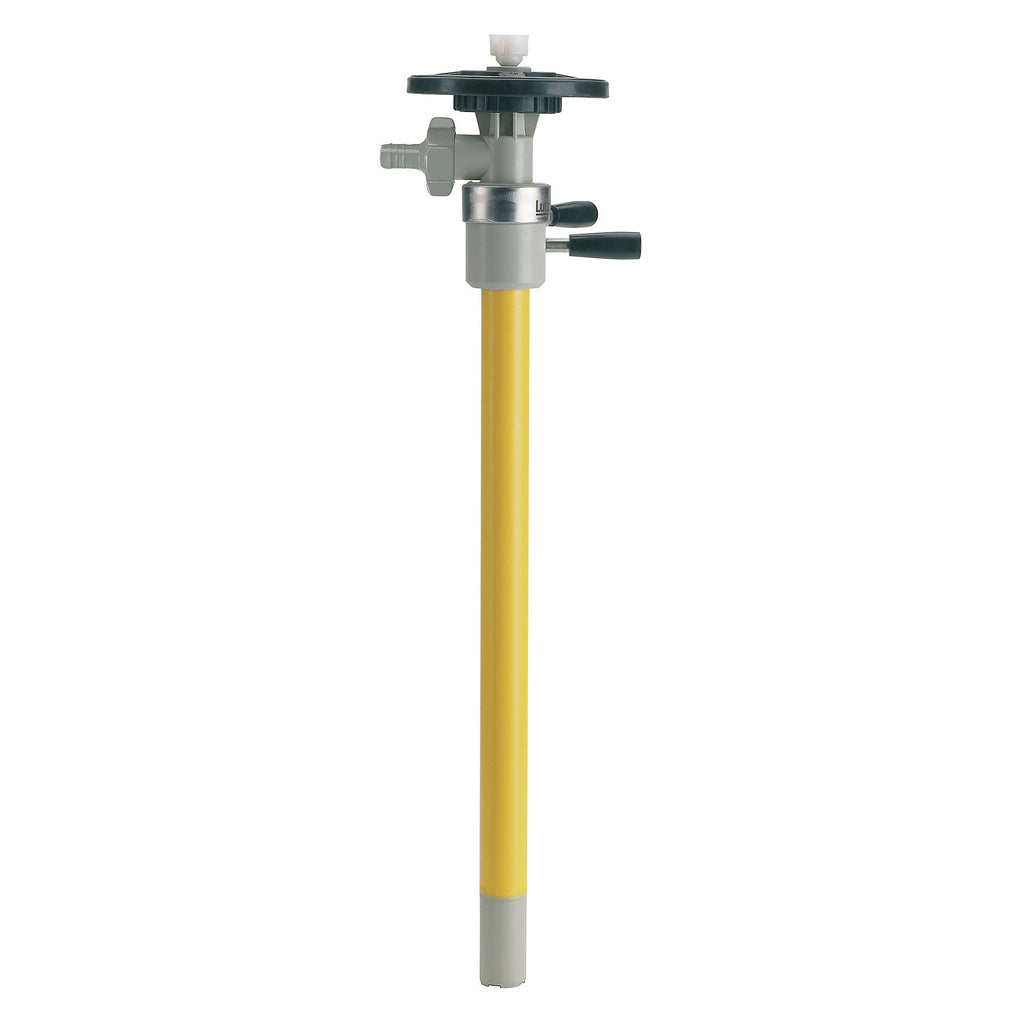

RE-88 PP Wetted Parts:
Mechanical seal: Carbon, Ceramic, FPM, HC-4 (2.4610)
Drive shaft: Stainless Steel (316 Ti), Hastelloy C
Examples of media: Water, Acids, Alkalis, Hydrazine, Oils, Fruit Juices, Galvanic Fluids, Phosphates, Sulphates, Nitrates etc.
Type of impeller: radial-flow impeller (L) Material: PP

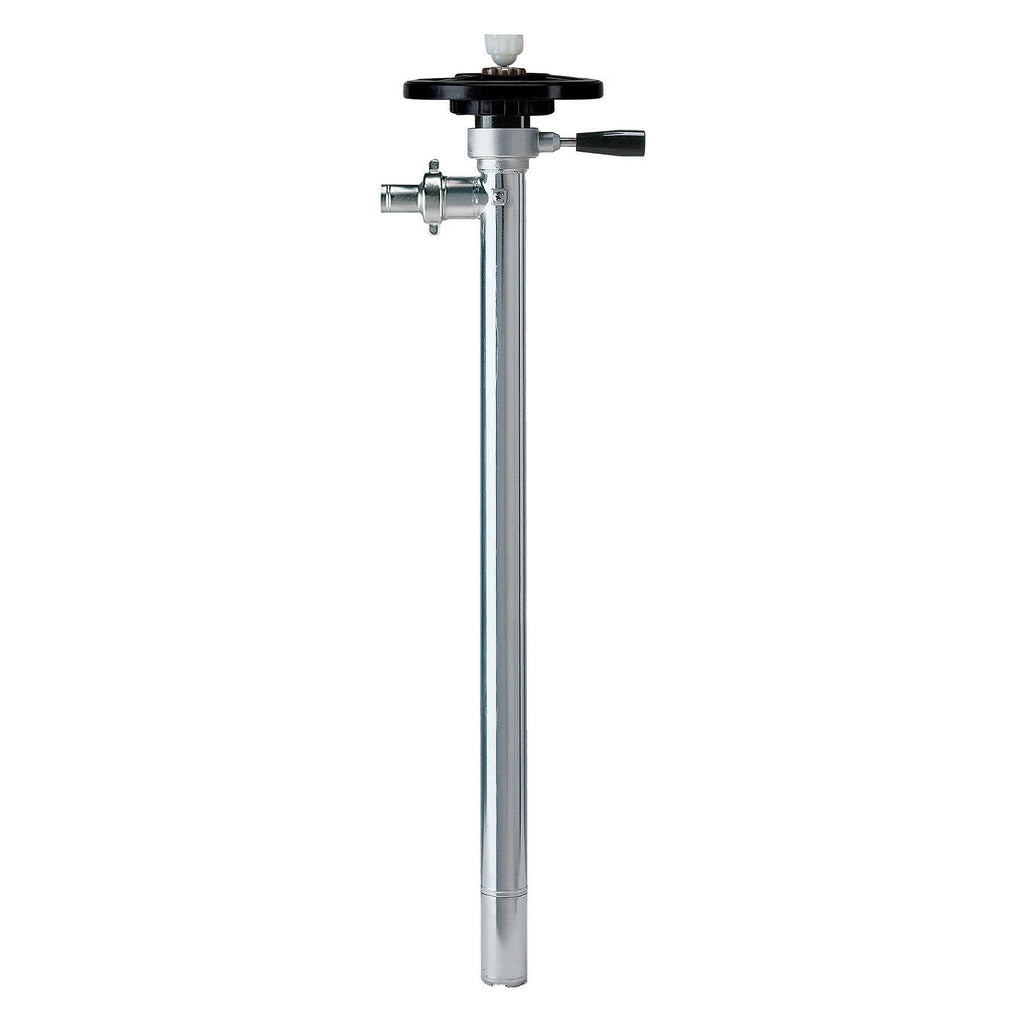

RE-88 SS Wetted Parts:
Housing: Stainless Steel (316 Ti)
Seals: FEP coated
Mechanical seal: Carbon, Ceramic, PTFE, HC-4 (2.4610)
Drive shaft: Stainless Steel (316 Ti)
Examples of media: Petrol, Fuel Oil, Diesel Oil, thin-bodied Oils, Solvents, Chlorine Carbon Hydrogens, Alcohols, Amines, Benzoles, Phenoles etc.
Type of impeller: radial-flow impeller (L) Material: ETFE
The RE 88 Polypropylene pump must not be used for flammable liquids.
