Lutz - MP-PP / MP-SS Mechanical Seal Pump Tubes

LutzSKU: 2580-1
No reviews

View

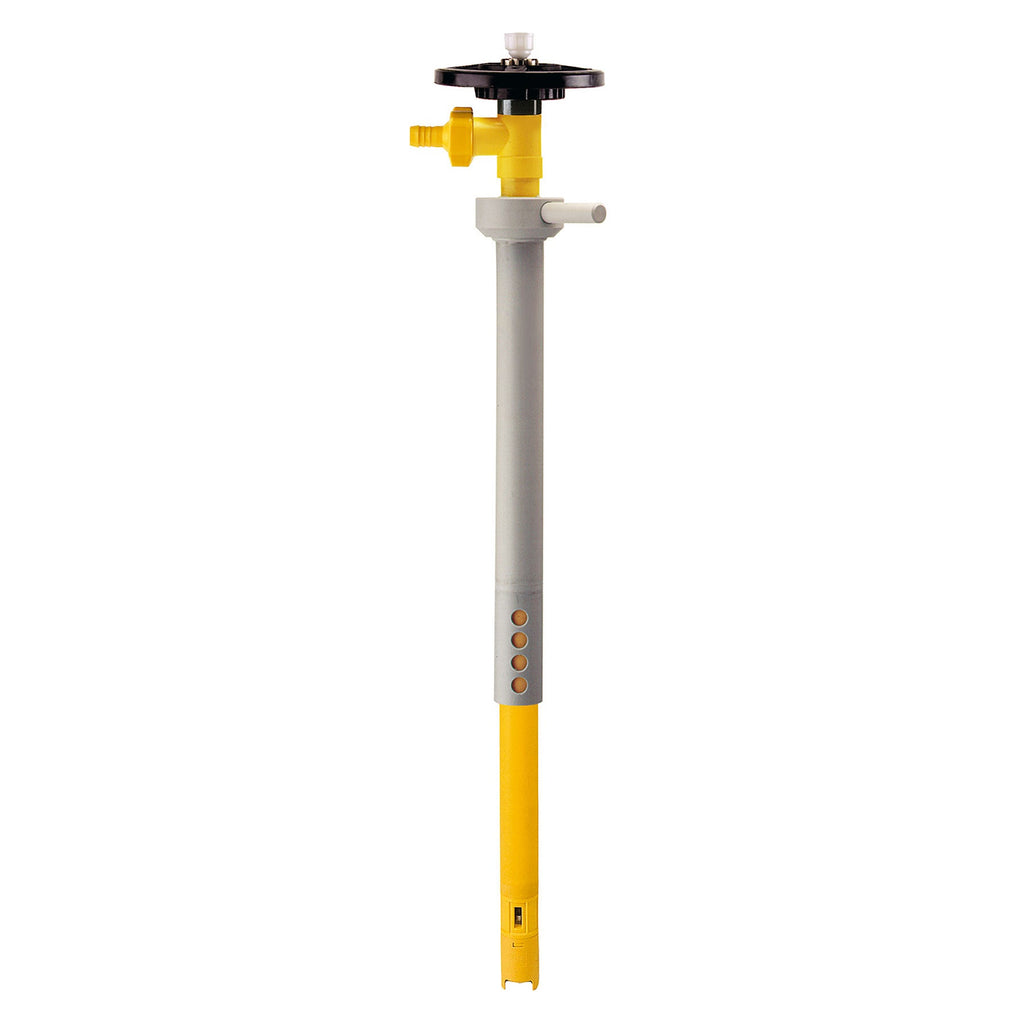

39 in. MP-PP Mechanical Seal Mixing Pump Tube
Price:
Sale price$1,182.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
39 in. MP-PP Mechanical Seal Mixing Pump Tube
2580-1
$1,182.00

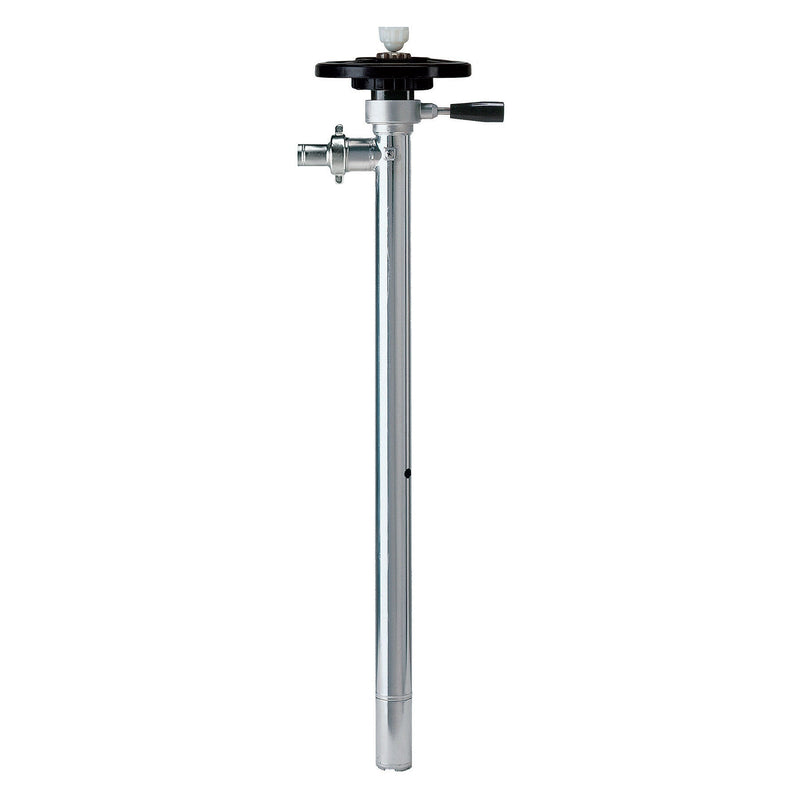

39 in. MP-SS Mechanical Seal Mixing Pump Tube
2581-1
$1,841.00

Description

Applications:
The Lutz mixing pump tube is designed to be used in any situation where it is necessary to mix and pump in a single operation. The relatively small pump tube diameter of 1.97" (Polypropylene) and 1.61" (Stainless Steel) also makes the unit ideal for use in narrow containers or in drums with a 2" bunghole. The flowrate, viscosity and density of the medium determine the mixing intensity and the delivery rate of the mixing pump tube. Experience has shown that the volume to be mixed should preferably not exceed 55 gallons if the medium is thin-bodied.

Structure and Function:
The drive shaft of this pump tube is sealed by a single-acting mechanical seal (MS) above the impeller, making a robust sealing system. The pump tube must not be allowed to run dry. The pump tube is non-lubricated, thus preventing contamination of the liquids pumped.

Length:
39", 47"
Special length on request

FDA
Pump tube also available in FDA/PURE version with Tri-Clamp connection. All materials coming into contact with the pumped medium are physiologically safe. These pump tubes are mainly used in the food, cosmetics and pharmaceutical industries.

MP MS-PP Wetted Parts:
Housing: PP
Seals: None
Mechanical seal: Carbon, SiC, FPM, HC
Bearings: ETFE/PTFE
Drive shaft: Stainless Steel (316 Ti)
Examples of media: Chemical, pharmaceutical and metalworking industries, in food production, in printing works, in car repair workshops and in painting/decorating firms.
Type of impeller: radial-flow impeller (L) Material: PP

MMP MS-SS Wetted Parts:
Housing: Stainless Steel (316 Ti)
Seals: FEP coatet
Mechanical seal: Ceramic, PTFE, Stainless Steel (316 Ti)
Bearings: Carbon
Drive shaft: Stainless Steel (316 Ti)
Examples of media: Chemical, pharmaceutical and metalworking industries, in food production, in printing works, in car repair workshops and in painting/decorating firms.
Type of impeller: axial-flow rotor (R) Material: ETFE

Warning:
The mixing pump tube in Polypropylene (PP) must not be used for flammable liquids.

Note:
Axial-flow rotor for high delivery rate and low delivery head. Radial-flow impeller for low delivery rate and high delivery head.
