Lutz Hand Regulating Nozzles

LutzSKU: 2590
No reviews

Grid List
3/4 in. PP Hand Regulating Nozzle
Drive Shaft:
Size:
Price:
Sale price$201.00

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
3/4 in. PP Hand Regulating Nozzle
2590
$201.00
1 in. PP Hand Regulating Nozzle
2591
$201.00
3/4 in. PVDF Hand Regulating Nozzle
2594
$509.00
1 in. PVDF Hand Regulating Nozzle
2595
$509.00
1 in. SS Hand Regulating Nozzle
2592
$747.00
1-1/4 in. SS Hand Regulating Nozzle
2593
$752.00

Product has been added to your cart

Please input the Quantity!

Description

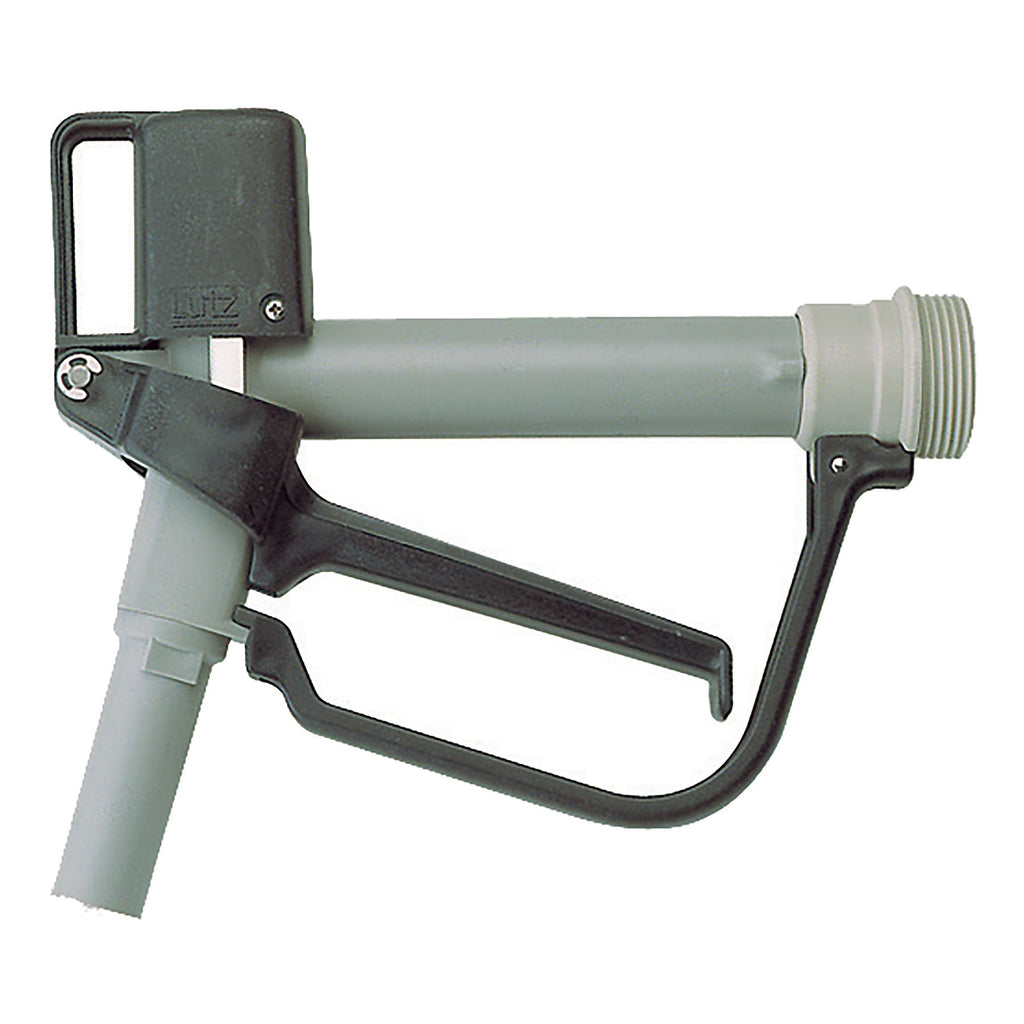

PP Nozzle
For filling and transferring neutral and aggressive liquids. With guard and two outlet spouts 0.9" (cylindrical) and 1/2" (tapered). Polypropylene (PP) housing and valve tappet. FFPM seals on request.
Seals: FPM
Operating pressure: max. 43.5 psi at 68ÁF
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 122 ÁF
Weight: approx. 0.55 lbs
Connection: hose barb 3/4ñ, 1"

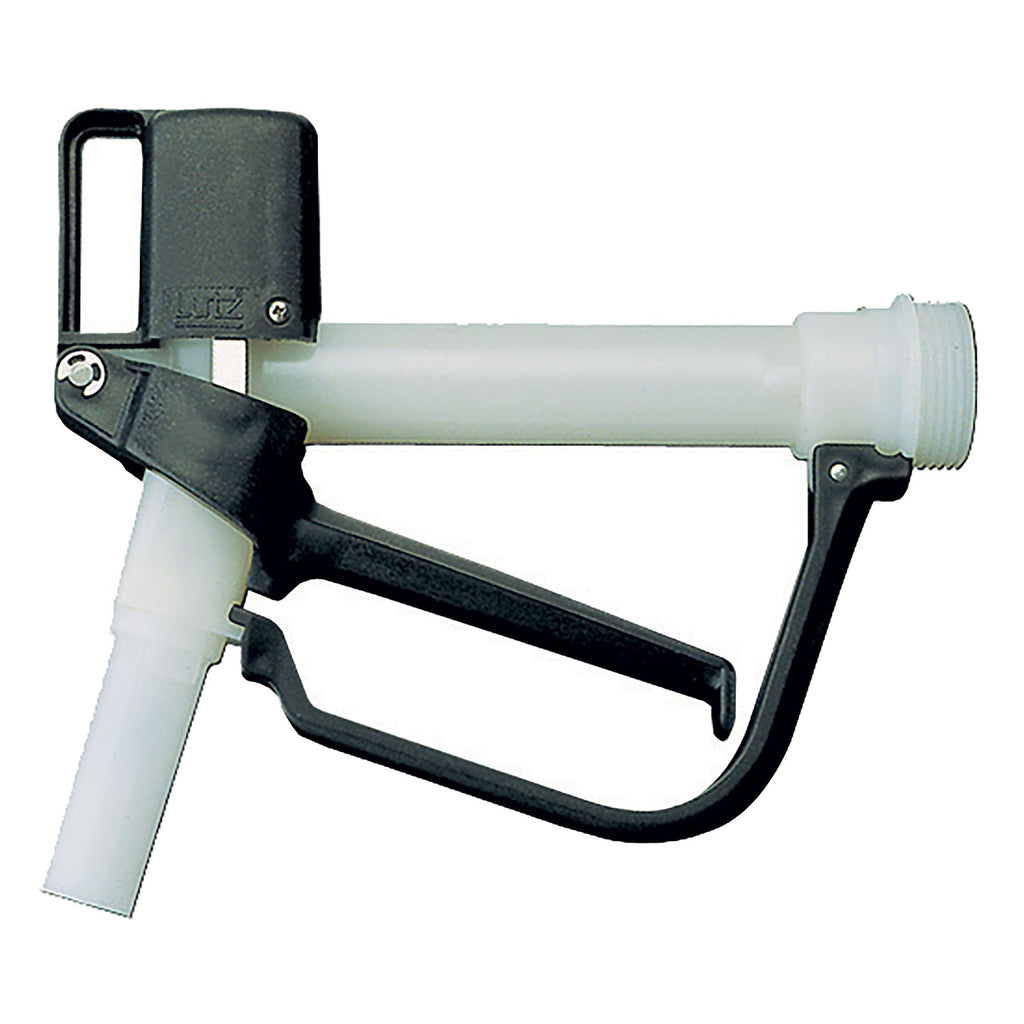

PVDF Nozzle
For filling and transferring neutral and aggressive liquids. With guard and two outlet spouts 0.9" (cylindrical) and 1/2" (tapered). Polyvinylidene fluoride (PVDF) housing and valve tappet. PTFE encapsulated FPM. FFPM seals upon request.
Seals: FPM
Operating pressure: max. 43.5 psi
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 176 ÁF
Weight: approx. 0.7 lbs
Connection: hose barb 3/4ñ, 1"

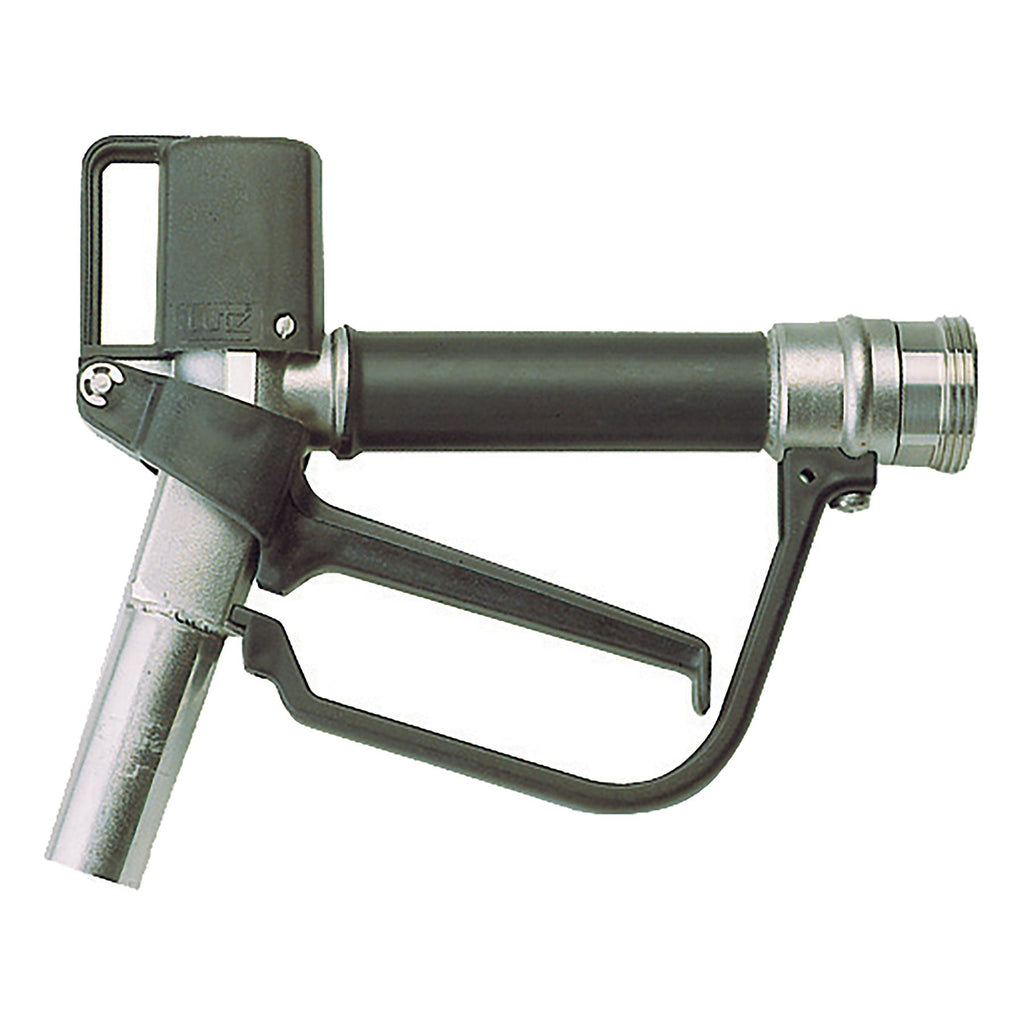

Stainless Steel Nozzle
Ideally suitable for filling and transferring liquids, also for combustible and flammable liquids, in food and pharmaceutical industry. Stainless steel (316) housing and valve tappet. With guard and swivel. FFPM seals on request.
Seals: FPM
Operating pressure: max. 43.5 psi
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 176 ÁF
Weight: approx. 2.2 lbs
Connection: hose barb 1", 1-1/4"
