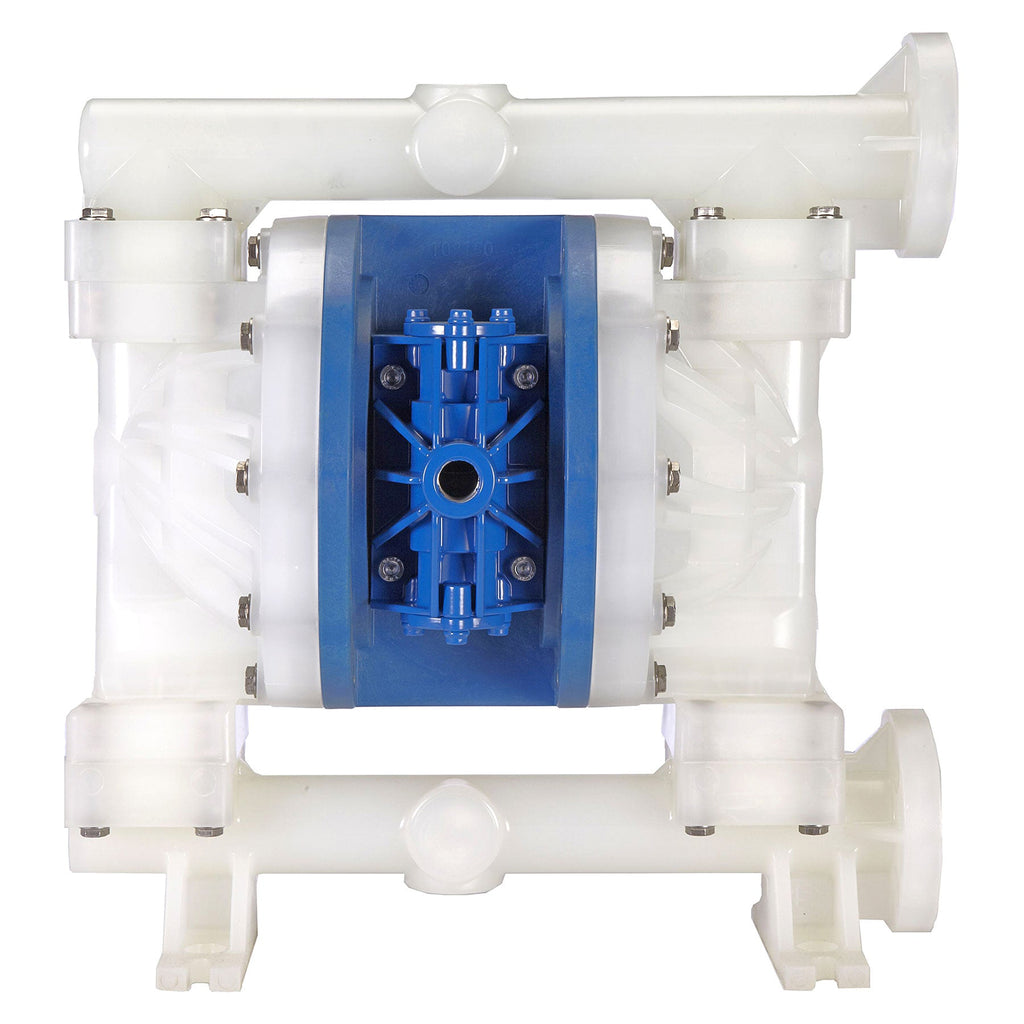

FTI Air Model FT10 Polypropylene 1 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT10P-PP-RRPR-F1
No reviews

Grid List
1 in. FT10 Polypropylene Non-Metallic Diaphragm Pump Santoprene
Diaphragm:
Price:
Sale price$804.54

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1 in. FT10 Polypropylene Non-Metallic Diaphragm Pump Santoprene
FT10P-PP-RRPR-F1
$804.54
1 in. FT10 Polypropylene Non-Metallic Diaphragm Pump PTFE/Santoprene
FT10P-PP-2TPC-F1
$975.20
1 in. FT10 Polypropylene Non-Metallic Diaphragm Pump EPDM
FT10P-PP-EEPB-F1
$838.46

Product has been added to your cart

Please input the Quantity!

Description

FTI Air Model FT10 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Polypropylene
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: Polypropylene
  • O-ring Materials: Buna-N, Santoprene, FEP/FKM
æWetted Non-wetted Diaphragm Valve/Ball
#1 Polypropylene Polypropylene
Santoprene Santoprene
#2 Polypropylene Polypropylene PTFE/ Santoprene PTFE
#3 Polypropylene Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Polypropylene Santoprene ANSI/DIN/ISO Flange FT10P-PP-RRPR-F1
#2 Polypropylene FEP/FKM ANSI/DIN/ISO Flange FT10P-PP-2TPC-F1
#3 Polypropylene Buna-N ANSI/DIN/ISO Flange FT10P-PP-EEPB-F1


* Santoprene is a registered tradename of Exxon Mobil Corporation
