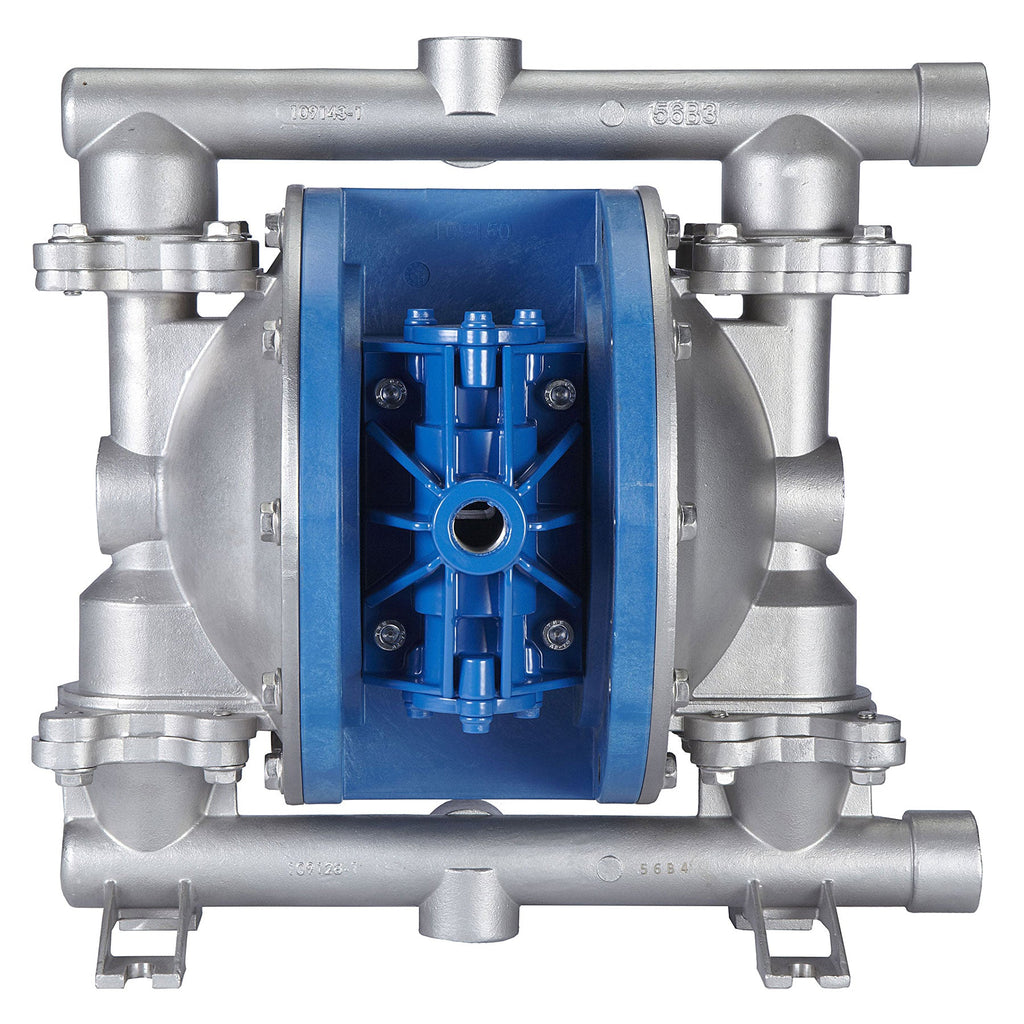

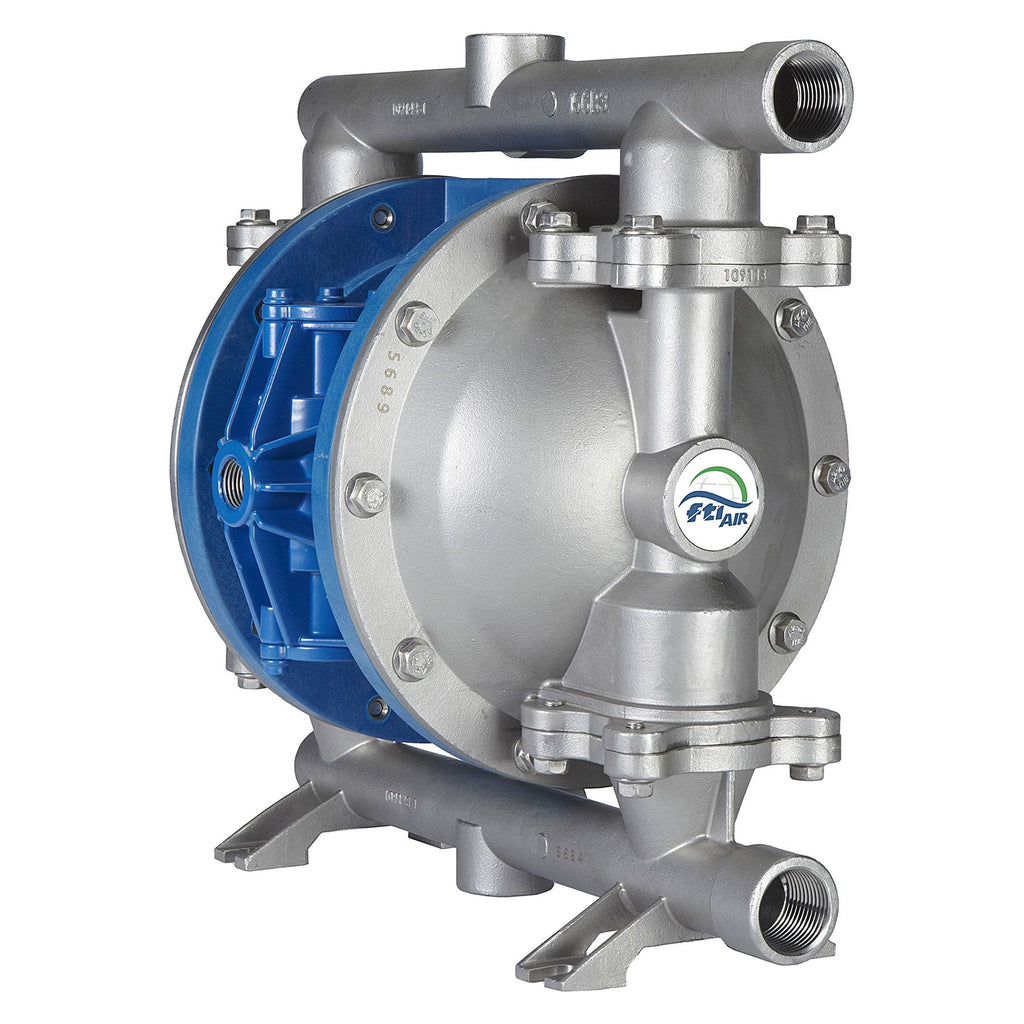

Model FT10 316 Stainless Steel 1 in. Metallic Diaphragm Pump

FTI AirSKU: FT10S-AA-RRST-N1

Grid List
1 in. FT10 316 Stainless Steel Metallic Diaphragm Pump Santoprene
Diaphragm:
Price:
Sale price$1,753.54

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1 in. FT10 316 Stainless Steel Metallic Diaphragm Pump Santoprene
FT10S-AA-RRST-N1
$1,753.54
1 in. FT10 316 Stainless Steel Metallic Diaphragm Pump PTFE/Santoprene
FT10S-AA-2TTC-N1
$1,925.54
1 in. FT10 316 Stainless Steel Metallic Diaphragm Pump EPDM
FT10S-AA-EESE-N1
$1,787.94

Product has been added to your cart

Please input the Quantity!

Description

FTI Air Model FT10 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Stainless Steel
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: Stainless Steel, PTFE
  • O-ring Materials: PTFE, FEP/FKM, EPDM

Wetted Non-wetted Diaphragm Valve/Ball
#1 Stainless Steel
Aluminum
Santoprene
Santoprene
#2 Stainless Steel
Aluminum
PTFE/ Santoprene PTFE
#3 Stainless Steel
Aluminum
EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Stainless Steel PTFE FNPT FT10S-AA-RRST-N1
#2 PTFE FEP/FKM FNPT FT10S-AA-2TTC-N1
#3 Stainless Steel EPDM
FNPT FT10S-AA-EESE-N1

* Santoprene is a registered tradename of Exxon Mobil Corporation
