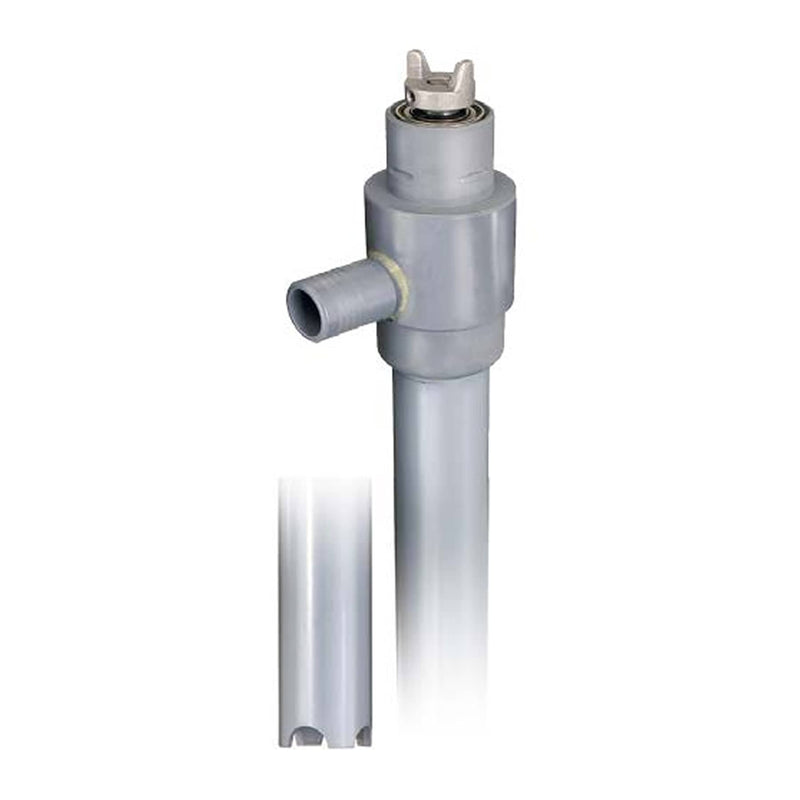

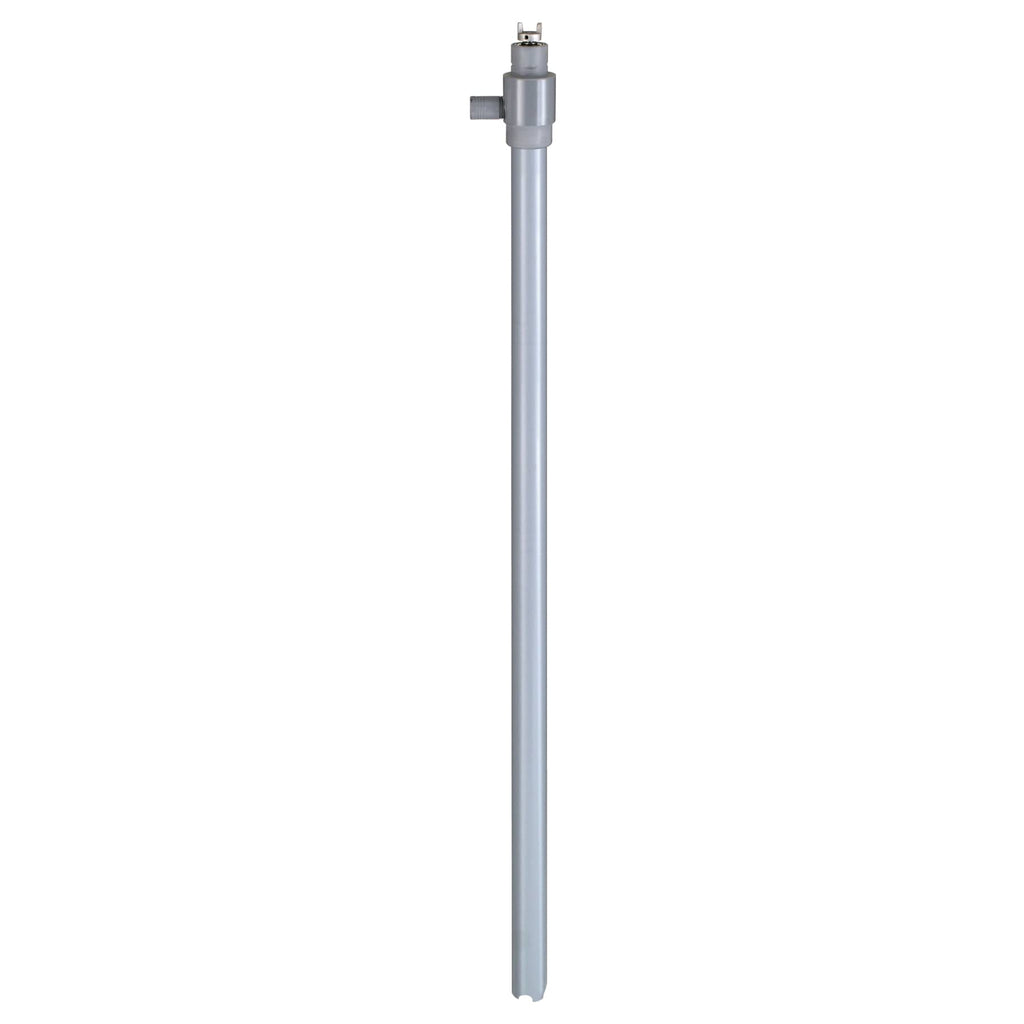

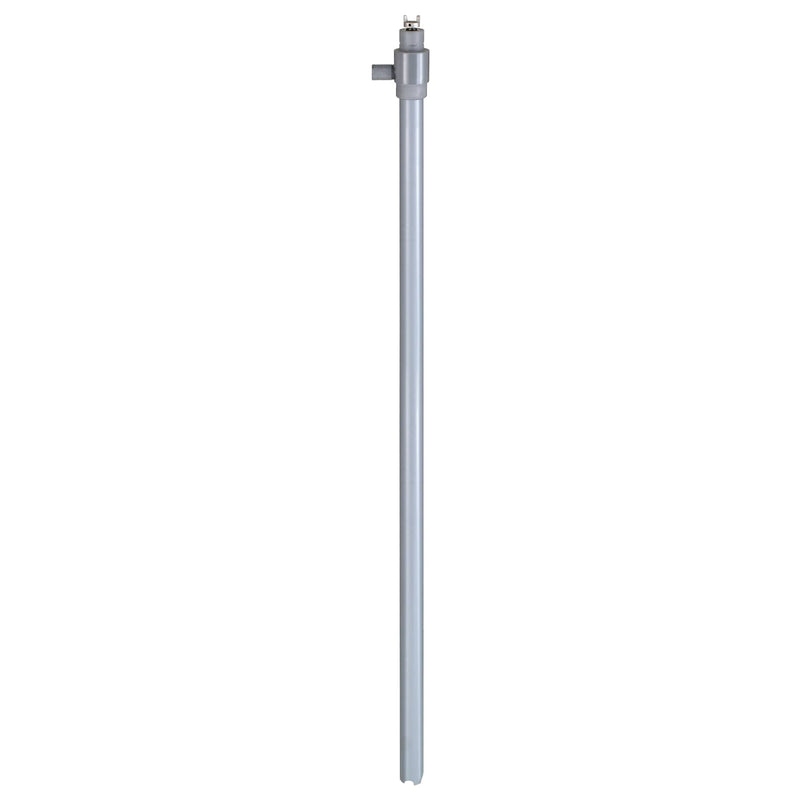

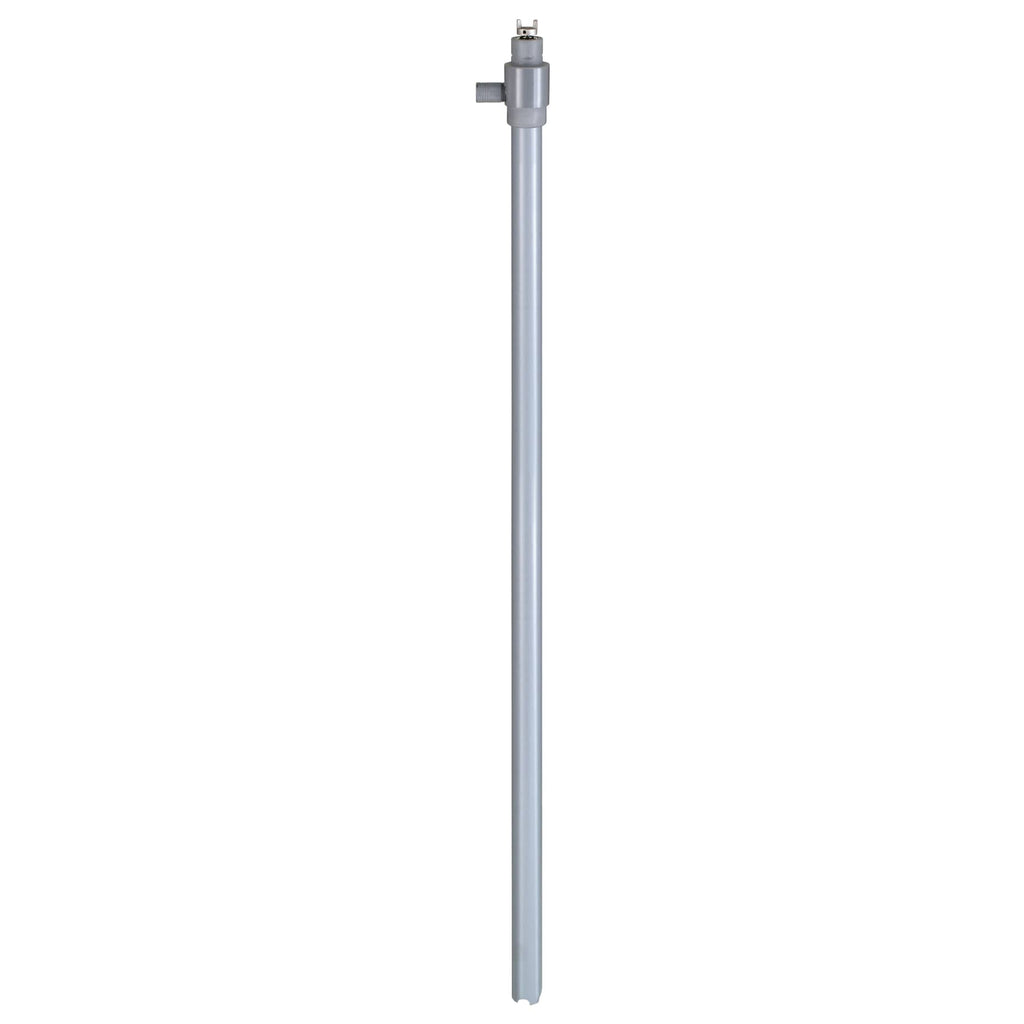

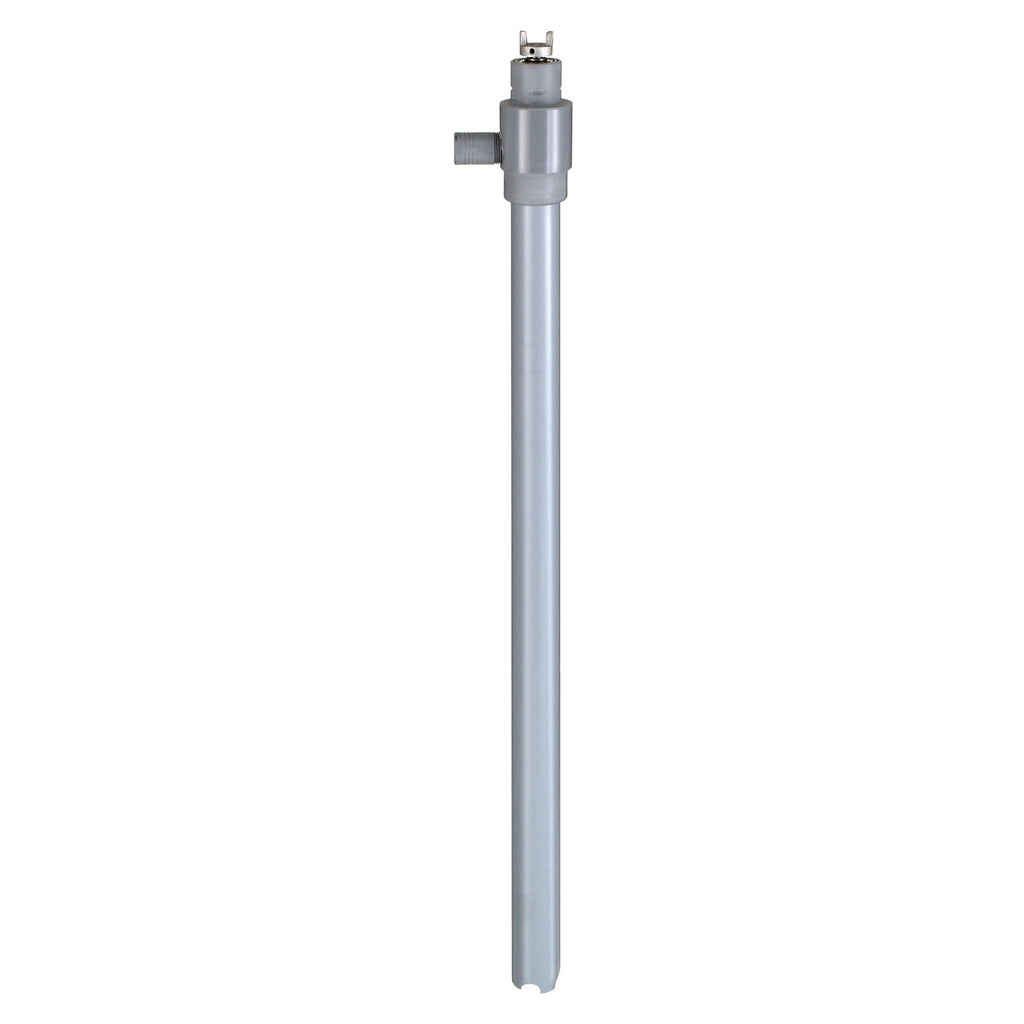

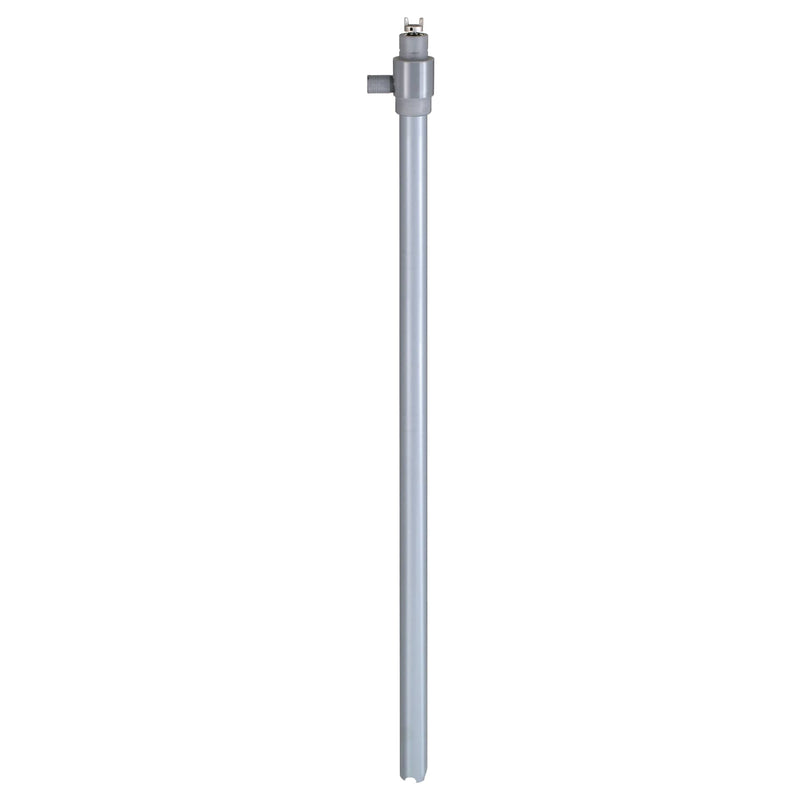

Finish Thompson TT Series CPVC PTFE Drum Pump Tube, 27 in. to 48 in. Lengths

Finish ThompsonSKU: DTTC007
No reviews

View
Price:
Sale price$820.44

Shipping calculated at checkout

Description
SKU
Price
Qty.
DTTC007
$820.44
DTTC008
$863.90
DTTC009
$940.22

Description

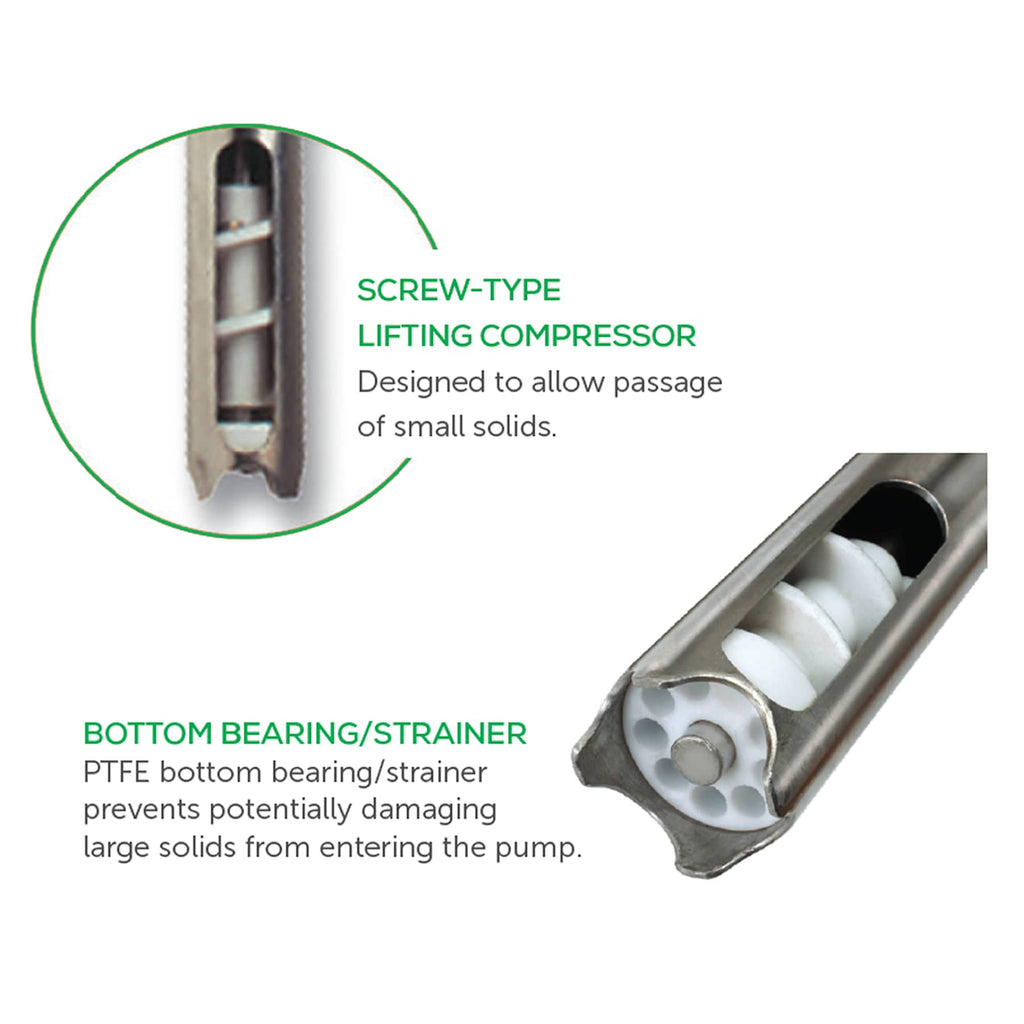

The Finish Thompson TT Series is a is a sealed, medium viscosity/flow drum pump. Sealed pump with PTFE screw-type lifting compressors. Ideal for liquids containing small particulate or solvents.

Specifications:

  • Maximum flow*: up to 16 gpm (61 lpm)
  • Maximum head*: up to 30 ft (9 m)
  • Maximum temperature: 150O F (66O C)
  • Maximum specific gravity: 1.8
  • Maximum viscosity: up to 500 cP with electric motor up to 2,000 cP with air motor
  • 1-5/8 in (4.1 cm) tube diameter
  • 1 in (2.5 cm) discharge

Applications:

  • Inks
  • Paints
  • Solvents†
  • Sanitary
  • Sodium
  • Hypochlorite

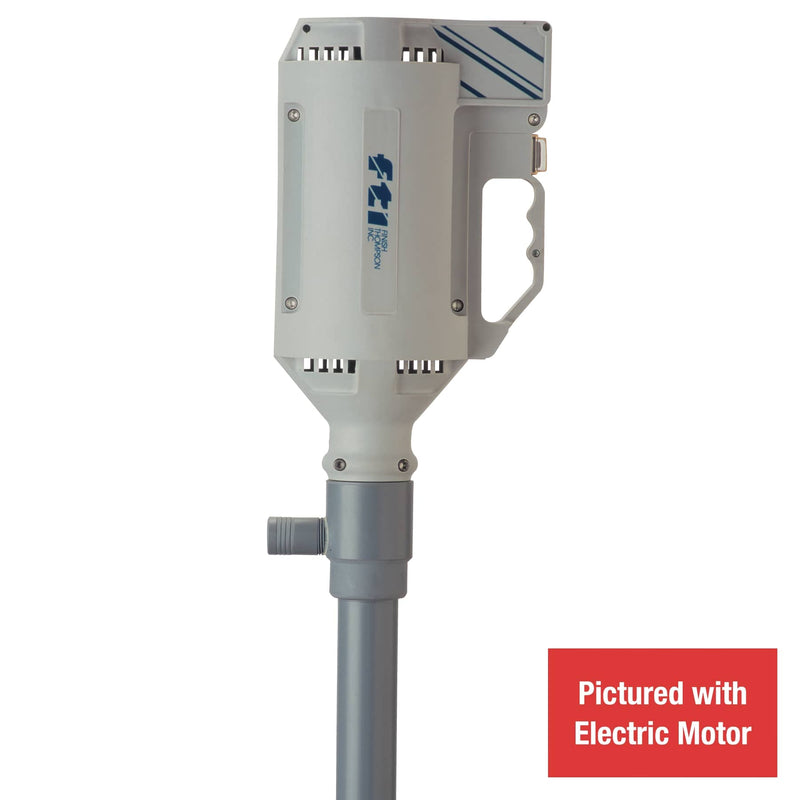

Compatible Motors:

  • TEFC: M7TV, M8TV
  • EXP: M7XV, M8XV
  • Air: M6, M6X

† When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.

* All testing performed with water at 68oF (20oC). Actual performance can vary by +/- 10%. Actual performance will decrease with increased fluid viscosity and specific gravity.
