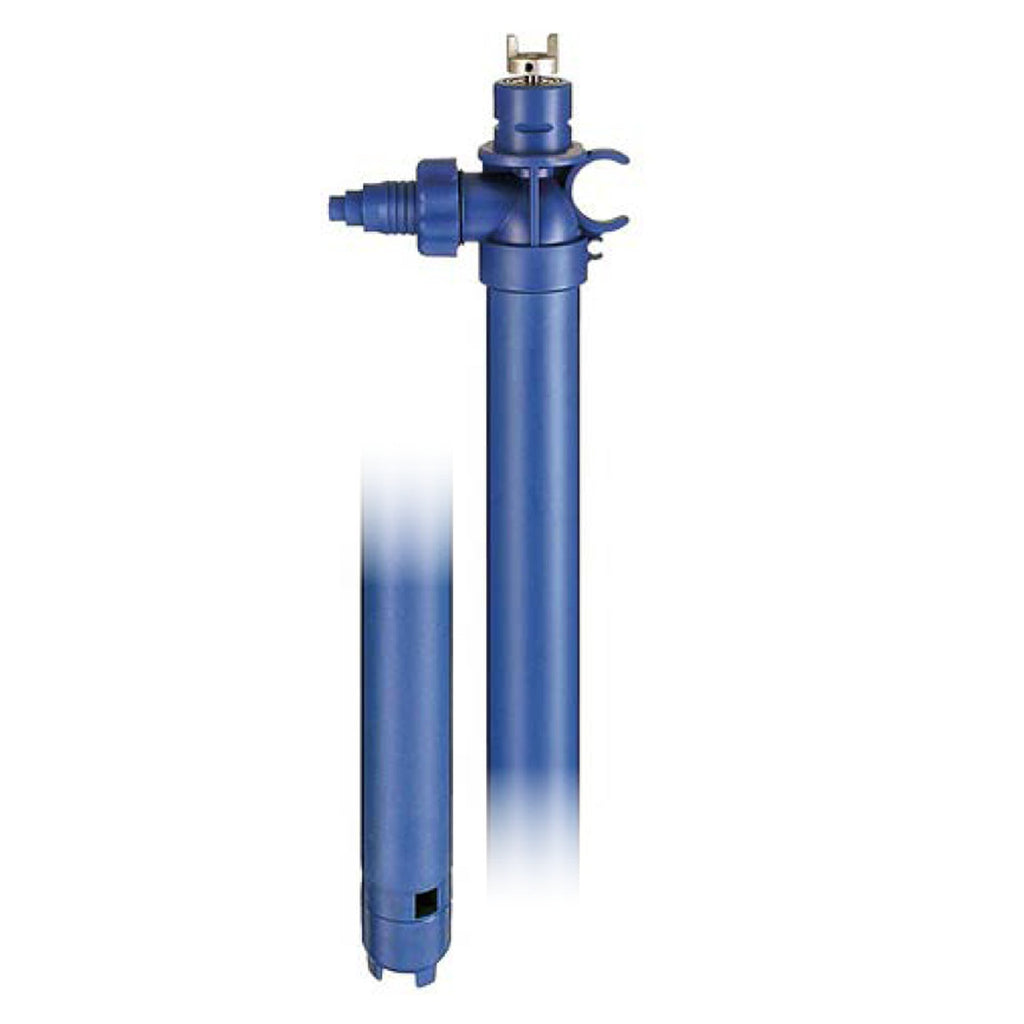

Finish Thompson PF Series PFM Polypropylene Drum Pump Tube, 27 in. to 48 in. Lengths

Finish ThompsonSKU: DPFM001
No reviews

View
27 in. tube length
Price:
Sale price$298.92

Shipping calculated at checkout

Description
SKU
Price
Qty.
27 in. tube length
DPFM001
$298.92
40 in. tube length
DPFM002
$312.70
48 in. tube length
DPFM003
$338.14

Description

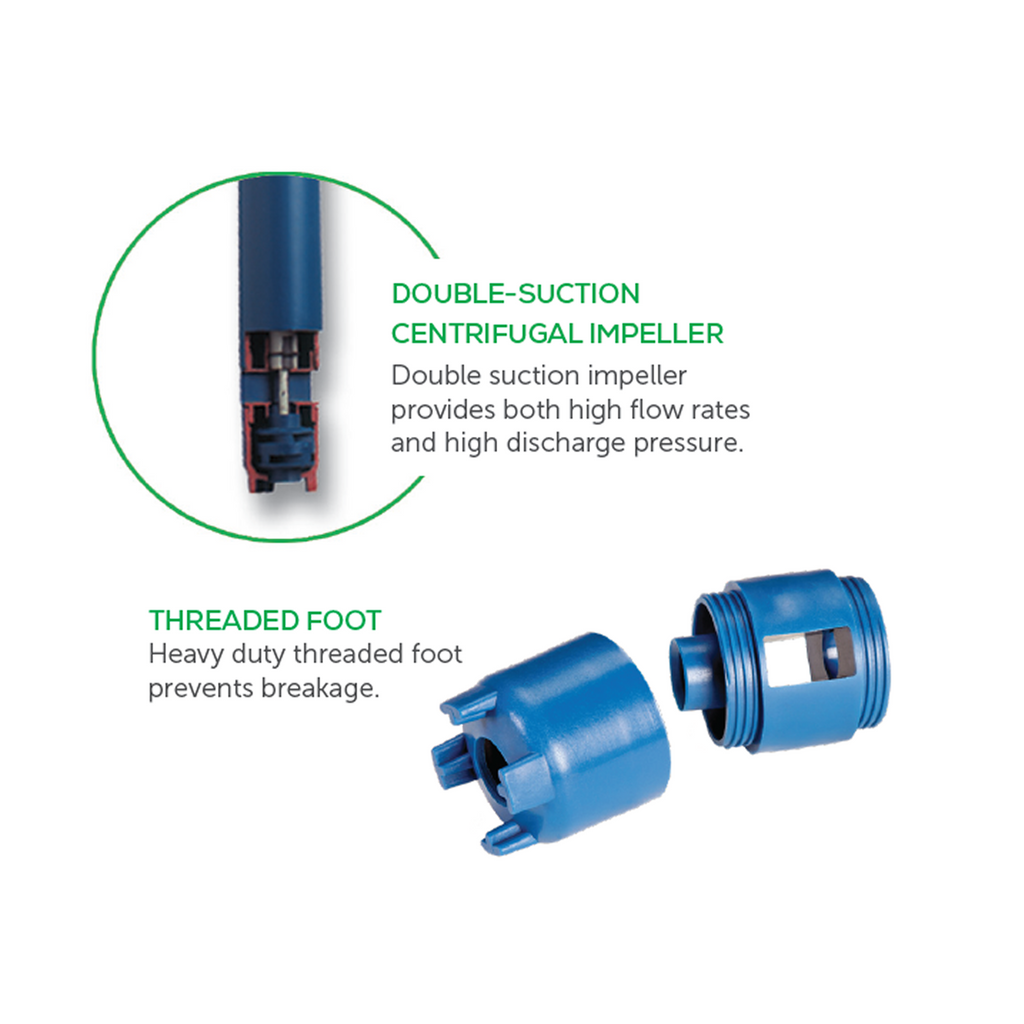

The Finish Thompson PF Series is a sealless, high performance drum pump. Unique double suction impeller provides high flow and high head. Handles acids, caustics, chemicals and flammables.

Specifications:

  • Internals: 316SS,  PP, FKM, PVDF. PTFE
  • Maximum flow*: up to 40 gpm (151 lpm)
  • Maximum head*: up to 80 ft (24 m)
  • Maximum temperature:
    -Polypropylene 160O F (71O C)
    -PVDF** 120O F (49O C)
    -316SS 220O F (105O C)
  • Maximum specific gravity: 1.8
  • Maximum viscosity:
    -up to 2,000 cP with electric motor
    -up to 330 cP with air motor
  • 2 in (5.1 cm) tube diameter
  • 1 in (2.5 cm) discharge
  • Pat. US D658, 274S; Pat. ZL 201130042124.3; OHIM, Pat. 001839002-0003

Applications:

  • Acids
  • Bases
  • Solvents†
  • Flammables†
  • Water treatment
  • Chemicals
  • Cleaners
  • Plating solutions
  • Kidney dialysis solutions
  • Sanitary
  • Diesel exhaust fluid (DEF)/AdBlue

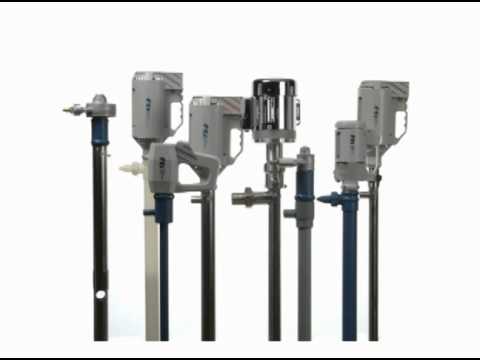

Compatible Motors:

  • ODP: M3V, M5V, M5V-US
  • TEFC: M3T, M5T, M3TV, M5TV
  • EXP: M3XV, M5XV
  • Air: M6, M6X

† When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.

* All testing performed with water at 68º F (20º C) in a full container with the discharge barb at maximum opening. Actual performance may vary by +/- 10%.
