Cordless Drum Pump Kit with EF Series Pure Polypropylene/PVDF Tube, 16 in. to 48 in. Lengths

Cordless
Finish ThompsonSKU: DEFV013

Grid List
16 in. tube length
Size:
Price:
Sale price$573.60

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
16 in. tube length
DEFV013
$573.60
27 in. tube length
DEFV014
$592.00
40 in. tube length
DEFV015
$633.60
48 in. tube length
DEFV016
$680.80

Product has been added to your cart

Please input the Quantity!

Description

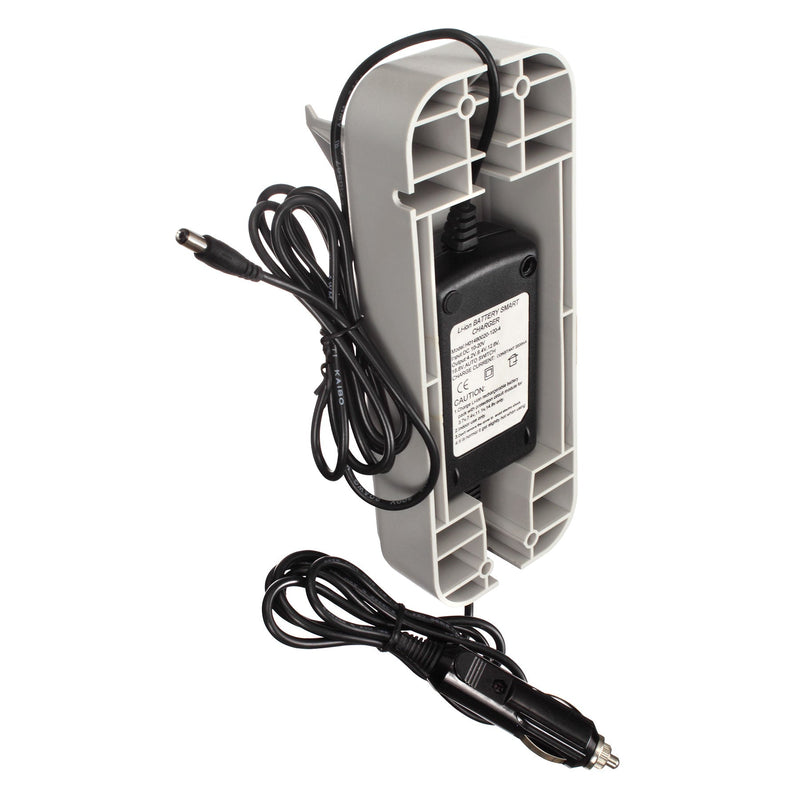

The Finish Thompson cordless, pure polypropylene/PVDF drum pump kit is perfect for light acids and bases, solvents, sodium hypochlorite, cleaners, and coolants (diesel exhaust fluid). The tube comes in length options of 16, 27, 40, and 48 inches. The dual speed cordless pump is powered by a lithium ion battery. The kit includes pump tube, motor, charger, wall hanger, discharge hose and hose clamp.

S6 Open Drip and Splash Proof 12-Volt Cordless Motor

Lightweight, cordless, dual speed, built-in rechargeable li-ion battery, overload
protection. Charging jack with flip cover.

  • 12-volt*, 3,200 mAh lithium ion battery for maximum performance
  • Cordless design for ultimate portability
  • Lightweight yet powerful
  • Dual speed for precise fluid dispensing
  • Dual cooling fans for longer battery life
  • Electronic overload protection
  • Integrated charging port
  • Fits all EF Series pump tubes

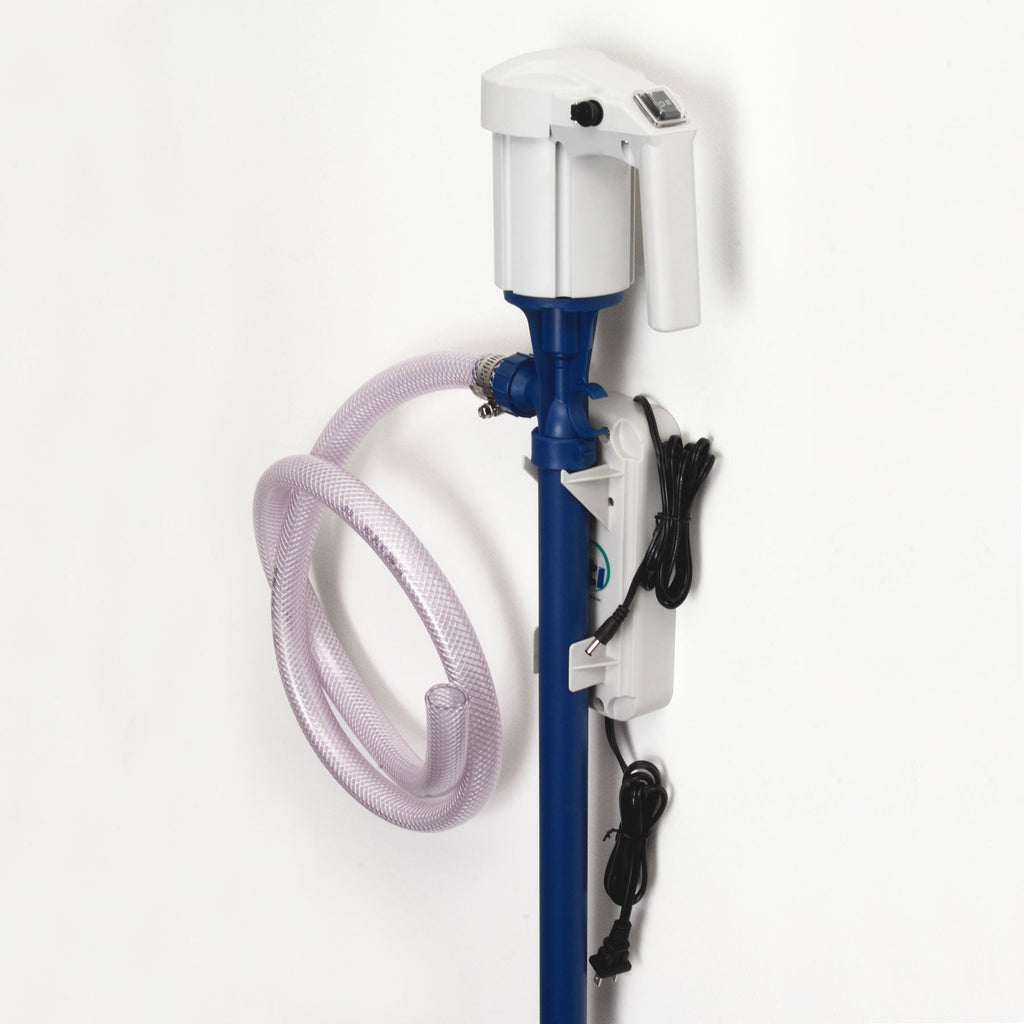

  • Available as kit with charger and wall mount hanger

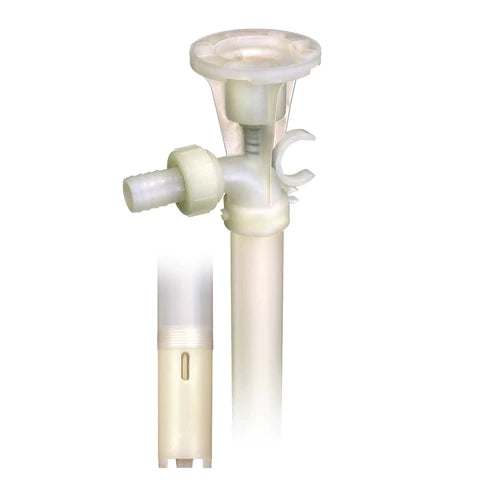

EF Series Pure Polypropylene/PVDF Alloy 625 FKM PTFE ETFE Drum Pump Tube

The Finish Thompson EF Series is a sealess, best value drum pump. This pump provides an economical and lightweight choice for light duty transfer. Ideal replacement for hand pumps.

  • Pure Polypropylene/PVDF
  • Interchangeable with motors (dual speed adjustable motors available)
  • Integral strainer
  • Built-in hose, cord clips
  • Maximum flow: up to 17 gpm (64.4 lpm)
  • Maximum head: up to 20 ft (6.1 m)
  • Maximum temperature: 160 degrees F (71 degrees C)
  • Maximum** specific gravity: 1.6
  • Maximum** viscosity: 300 cP with electric/air motor; 100 cP with 12V motor
  • 1-5/16 in (3.3 cm) tube diameter
  • 3/4 in (1.9 cm) discharge
  • Pat. US D658,273 S; Pat. US D657,849 S; Pat. ZL 201130042121.X; Pat. ZL 201130042107.X; OHIM Pat. 001839002-0002; OHIM Pat.001839002-0001

    Notes

    * Maximum initial voltage is 12 volts. Under workload, nominal voltage is 10.8.
    ** Maximum specific gravity is dependent on fluid viscosity; maximum fluid viscosity is dependent upon specific gravity.
